GIGABYTE B650M S2H, DDR5, SATA3, USB3.2Gen1, DP, AM5 mATX

GIGABYTE B650M S2H, DDR5, SATA3, USB3.2Gen1, DP, AM5 mATX

121,68

Dobavljivo

Oznaka: Kategorije: , , Šifra: GIGMB-GA-B650MS2H_1
Brand:

Dodatne informacije

Teža 1,6250 kg
Dimenzije 33 × 26,5 × 7 cm
Garancija

Vrsta izdelka

Blagovna znamka

OPIS IZDELKA

PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD RYZEN 7000 Series
FORMAT: mATX format 23 cm x 22.5 cm
VEZNI ČIP: AMD B650
POMNILNIK:
2 x DDR5 DIMM non-ECC 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400MHz (odvisno od procesorja) do skupno 96GB kapacitete, Dual channel memory architecture, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
RAID: DA (0,1,10)
RAZŠIRITVENE REŽE:
1 x PCI Express 3.0/4.0 x16
1 x PCI Express 3.0 x1
MREŽNA KARTICA: Realtek LAN chip (10/100/1000Mbit)
ZVOČNA KARTICA: Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

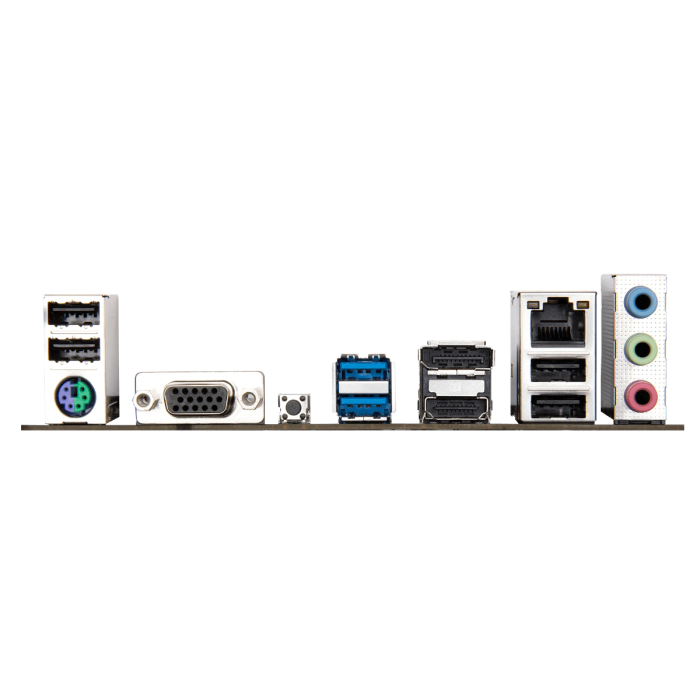

ZUNANJI PRIKLJUČKI:
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks
DODATNO:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/B650M-S2H-rev-11#kf
