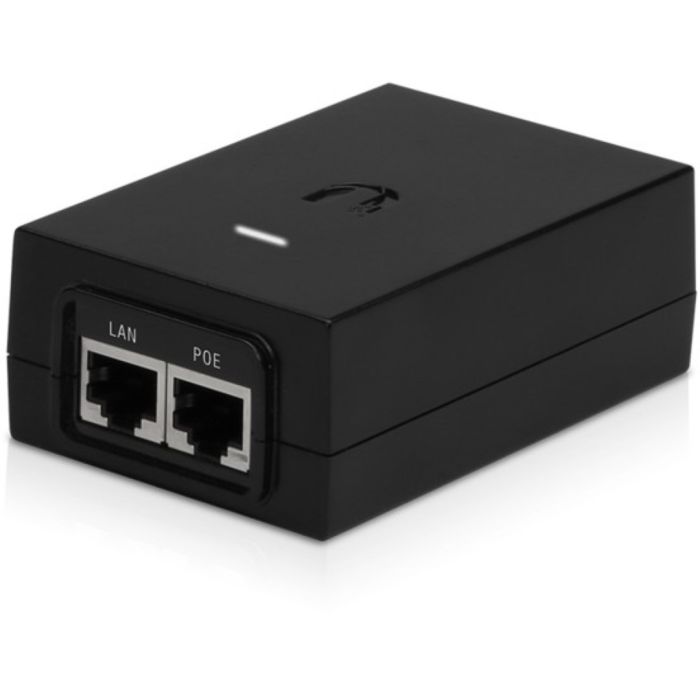

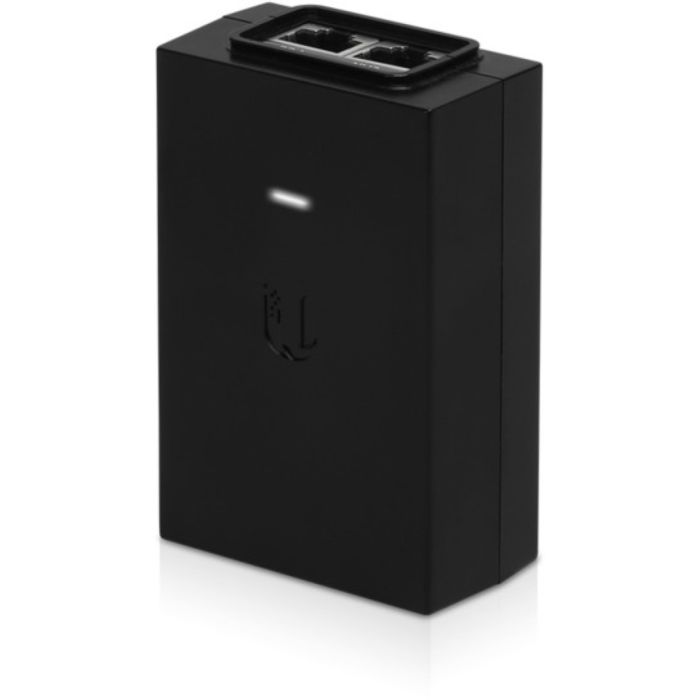

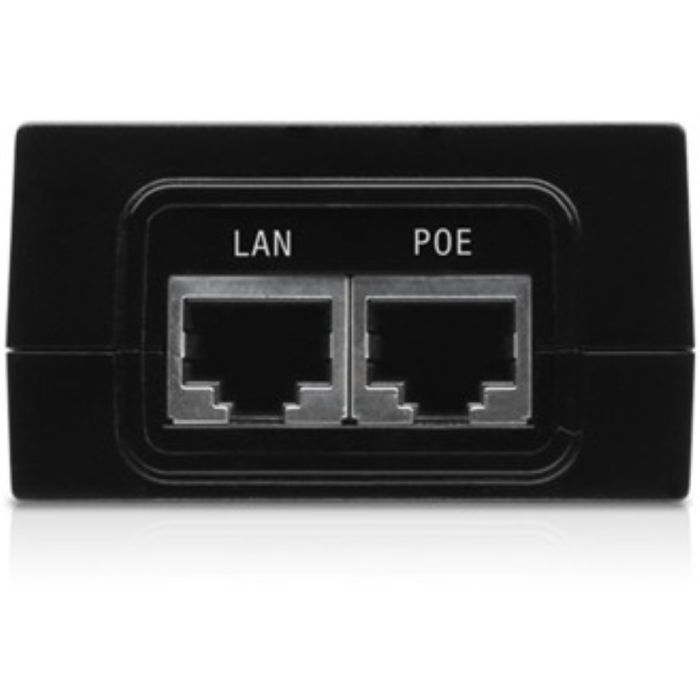

Ubiquiti gigabitni POE adapter POE-24-24W-G
24,07 €
Dodatne informacije
| Teža | 0,160000 kg |
|---|---|
| Dimenzije | 6 × 4 × 9 cm |
| Garancija | |
| Vrsta izdelka | |
| Blagovna znamka |
OPIS IZDELKA
Ubiquiti PoE adapterji nudijo različne funkcije za zaščito vaših naprav PoE:
– Prenapetostna zaščita
– Zaščita pred vpenjanjem
– Največja prenapetostna razelektritev
– Najvišji impulzni tok
– AC kabel z ozemljitvijo
Elektrostatična razelektritev (ESD) je glavni vzrok za okvare zunanjih naprav.
Z ozemljenim adapterjem Ubiquiti PoE, TOUGHCableTM in TOUGHCable konektorji se lahko učinkovito zaščitite pred poškodbami zaradi ESD.
| Specifikacije | |
| Model | POE-24-24W-G |
| Dimensions | 88 x 57 x 33 mm (3.47 x 2.24 x 1.30″) |
| Weight | 158.5 g (5.59 oz) |
| Output Voltage | 24VDC @ 1.0A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <60A Peak @ 120VAC, <120A Peak @ 230VAC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | – |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / PoE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
Uradna stran proizvajalca: https://eu.store.ui.com/collections/operator-accessories/products/poe-injector-24vdc-24w-gbit
