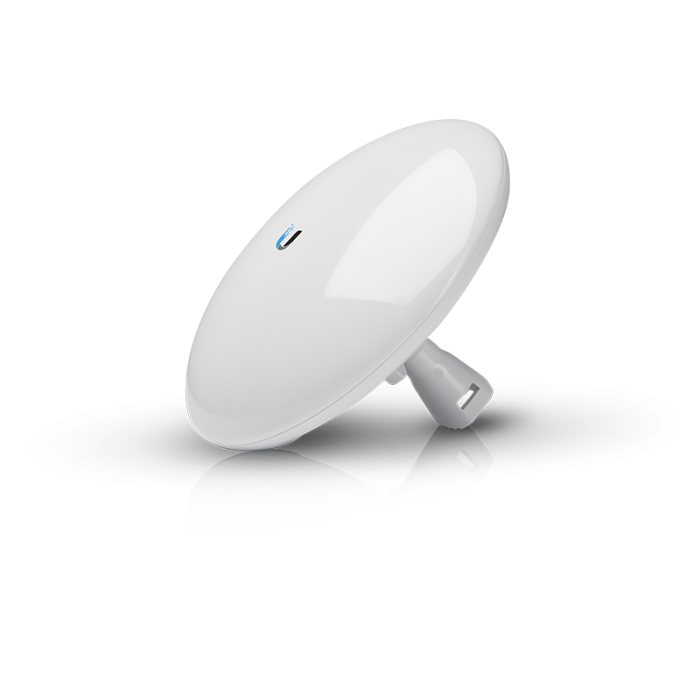

Ubiquiti NanoBeam ac NBE-5AC-GEN2
119,56 €
Dodatne informacije
| Teža | 0,7000 kg |
|---|---|
| Dimenzije | 19 × 13 × 19 cm |
| Garancija | |
| Vrsta izdelka | |
| Blagovna znamka |
OPIS IZDELKA
Kompakten, 5 GHz WiFi most, pripravljen za UISP, z izboljšano zaščito pred prenapetostjo ter optimiziranim radiom in anteno.
Eleganten dizajn NanoBeam z lastniškim naborom čipov airMAX ac in namenskim upravljanjem Wi-Fi za enostavno podporo za mobilne aplikacije UISP in hitro nastavitev.
Ta airMAX ac CPE se vrti na krogličnem zglobu za prilagodljivost pri montaži in poravnavi.
Lastnosti:
– Nova antena
– Izboljšana zasnova radia
– Izboljšana prenapetostna zaščita
– Upravljanje WiFi Radio / mobilna aplikacija UNMS
– AirOS 8
Specifikacije:
| NBE-5AC-Gen2 | |
| Dimensions (Mount Included) | 189 x 189 x 125 mm |
| (7.44 x 7.44 x 4.92″) | |
| Weight (Mount Included) | 530 g |
| (1.17 lb) | |
| Gain | 19 dBi |
| Networking Interface | (2) 10/100/1000 Ethernet Port, Wi-Fi for Management |
| Enclosure | Outdoor UV Stabilized Plastic |
| Max. Power Consumption | 8.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Wind Loading | 45.4 N @ 200 km/h |
| (10.2 lbf @ 125 mph) | |
| Wind Survivability | 200 km/h |
| (125 mph) | |
| Certifications | CE, FCC, IC |
| Mounting | Pole-Mount (Kit Included) |
| Wall-Mount (Not Included) | |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Temperature | -40 to 80° C (-40 to 176 F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), |
| Equivalent: MIL-STD-810 G Method 509.5 | |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| Processor Specs | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2, 8 MB Flash |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Signal Strenght LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
| Max. VSWR | 1.5:1 |
| Channel Sizes | |
| PtP Mode | 10/20/30/40/50/60/80 MHz |
| PtMP Mode | 10/20/30/40 MHz |
| Polarization | Dual Linear |
| RoHS Compliance | Yes |
| UV Test | IEC 68-2-5 at 40° C (104° F), |
| Equivalent: ETS 300 019-1-4 | |
| Wind-Driven Rain Test | ETS 300 019-1-4, |
| Equivalent: MIL-STD-810 G Method 506.5 | |
| Operating Frequency MHz | |
| Worldwide | 5150-5875 |
| USA | |
| U-NII-1 | 5150-5250 |
| U-NII-2A | 5250-5350 |
| U-NII-2C | 5240-5725 |
| U-NII-3 | 5725-5850 |
| Management Radio (MHz) | |
| Worldwide | 2412 – 2472 |
| USA | 2412 – 2462 |
