Mikrotik hAP ac³ usmerjevalnik
Dodatne informacije
Teža | 0,5000 kg |
---|---|
Dimenzije | 25,1 × 12,9 × 3,9 cm |
Garancija | |
Vrsta izdelka | |
Blagovna znamka |
OPIS IZDELKA

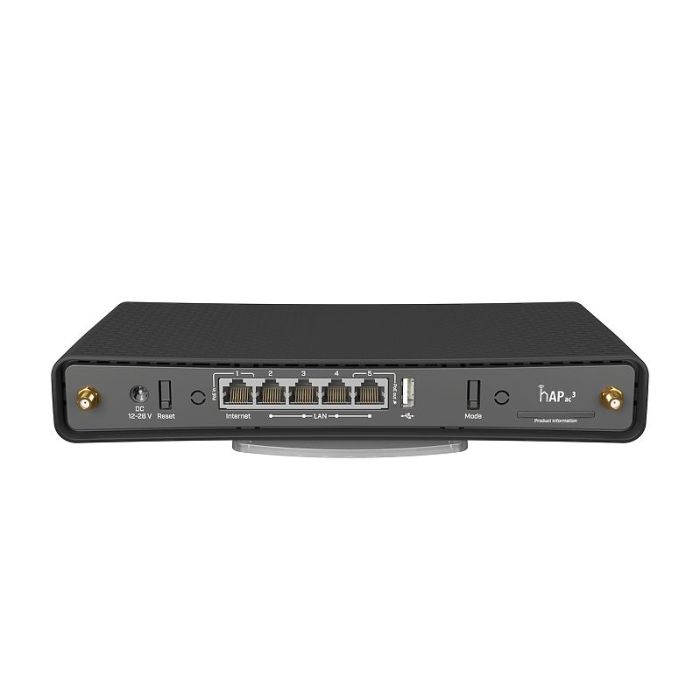

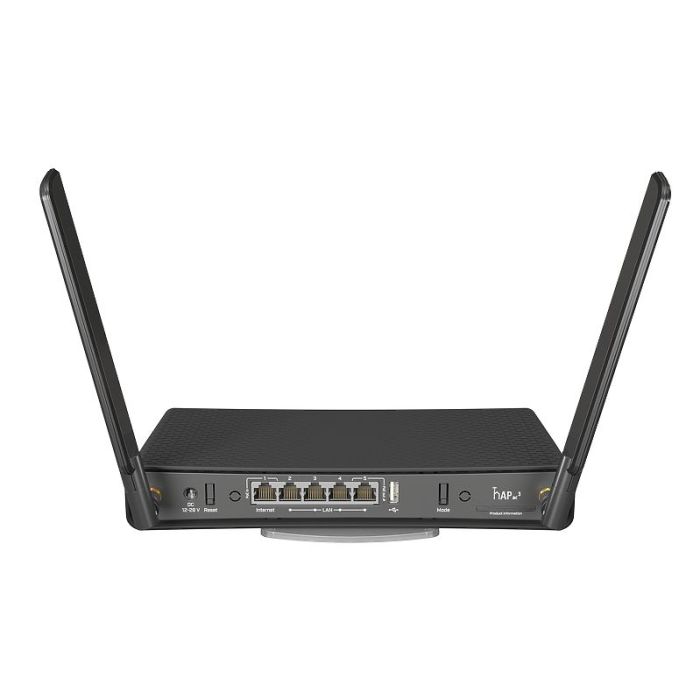

hAP ac³ je brezžični dvopasovni usmerjevalnik s 5 gigabitnimi Ethernet vrati in zunanjimi visoko ojačljivimi antenami za večjo pokritost!
Pozabite na neskončno iskanje popolnega usmerjevalnika in pomikanje skozi celo vrsto testov in specifikacij!
Mikrotik je ustvaril cenovno dostopno točko za dom, ki ima vse funkcije, ki jih boste morda potrebovali v prihodnjih letih!
Ali se vaš stari usmerjevalnik trudi doseči vsak kotiček vašega doma? Pozabite na to!

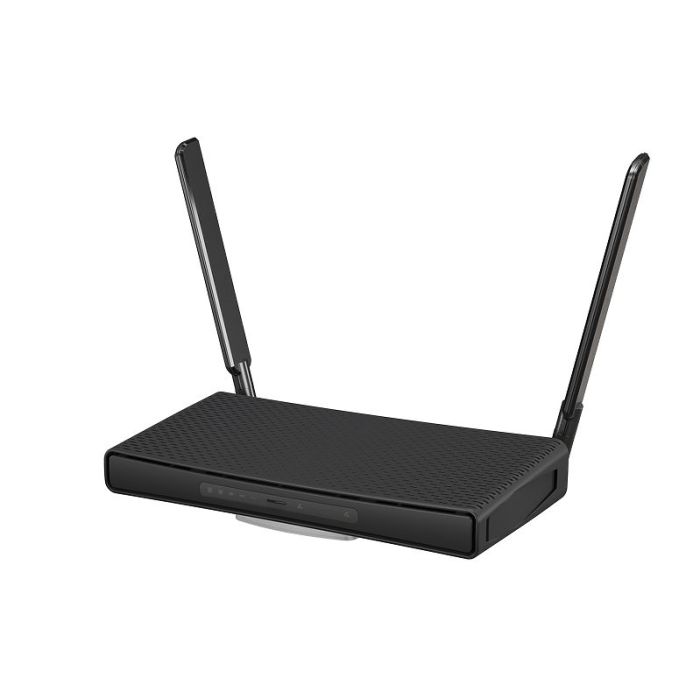

Vključene so zunanje visokozmogljive brezžične antene z izjemno pokritostjo. Odslej v vsaki sobi le močna in stabilna brezžična povezava!
S 5 gigabitnimi Ethernet vrati, 256 MB RAM-a in štirijedrnim CPU lahko hAP ac³ zadovolji tudi največja in najzahtevnejša gospodinjstva.
S podporo za PoE lahko napaja druge naprave. Na voljo sta 128 MB NAND in vhod USB, s katerimi lahko dodate dodaten prostor za shranjevanje.

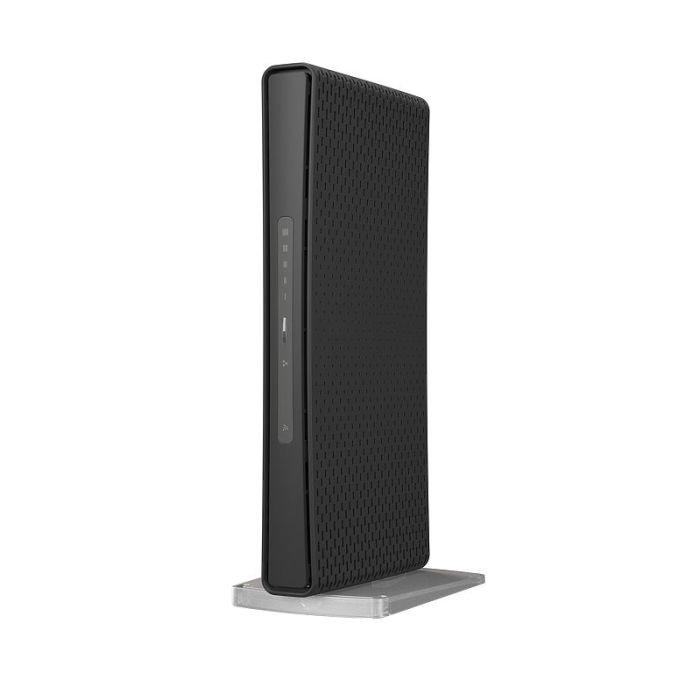

Novo ohišje omogoča namestitev naprave navpično ali vodoravno. Vključen je tudi komplet za pritrditev na steno.
SPECIFIKACIJE:
Details | ||
Product code | RBD53iG-5HacD2HnD | |
Architecture | ARM 32bit | |
CPU | IPQ-4019 | |
CPU core count | 4 | |
CPU nominal frequency | 716 MHz | |
Dimensions | 251 x 129 x 39 mm | |
RouterOS license | 4 | |
Operating System | RouterOS | |
Size of RAM | 256 MB | |
Storage size | 128 MB | |
Storage type | NAND | |
MTBF | Approximately 100’000 hours at 25C | |
Tested ambient temperature | -40°C to 70°C | |
IPsec hardware acceleration | Yes | |
Suggested price | $99.00 | |
Wireless capabilities | ||
Details | ||
Wireless 2.4 GHz Max data rate | 300 Mbit/s | |
Wireless 2.4 GHz number of chains | 2 | |
Wireless 2.4 GHz standards | 802.11b/g/n | |
Antenna gain dBi for 2.4 GHz | 3 | |
Wireless 2.4 GHz chip model | IPQ-4019 | |
Wireless 2.4 GHz generation | Wi-Fi 4 | |
Wireless 5 GHz Max data rate | 867 Mbit/s | |
Wireless 5 GHz number of chains | 2 | |
Wireless 5 GHz standards | 802.11a/n/ac | |
Antenna gain dBi for 5 GHz | 5.maj | |
Wireless 5 GHz chip model | IPQ-4019 | |
Wireless 5 GHz generation | Wi-Fi 5 | |
AC speed | AC1200 | |
Ethernet | ||
Details | ||
10/100/1000 Ethernet ports | 5 | |
Number of 1G Ethernet ports with PoE-out | 1 | |
Peripherals | ||
Details | ||
Number of USB ports | 1 | |
USB Power Reset | Yes | |
USB slot type | USB type A | |
Max USB current (A) | 1 | |
Powering | ||
Details | ||
Number of DC inputs | 2 (DC jack, PoE-IN) | |
DC jack input Voltage | 12-28 V | |
Max power consumption | 30 W | |
Max power consumption without attachments | 12 W | |
FAN count | Passive | |
PoE in | Passive PoE | |
PoE in input Voltage | 18-28 V | |
PoE-out | ||
Details | ||
PoE-out ports | Ether5 | |
PoE out | Passive PoE | |
Max out per port output (input 18-30 V) | 0.5 A | |
Max total out (A) | 0.5 A | |
Certification & Approvals | ||
Details | ||
Certification | CE, FCC, IC, EAC, ROHS | |
IP | IP20 | |
Other | ||
Details | ||
Mode button | Yes | |
Wireless specifications | ||
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
1MBit/s | 25 | -100 |
11MBit/s | 25 | -94 |
6MBit/s | 26 | -96 |
54MBit/s | 23 | -78 |
MCS0 | 26 | -96 |
MCS7 | 22 | -73 |
5 GHz | Transmit (dBm) | Receive Sensitivity |
6MBit/s | 26 | -96 |
54MBit/s | 22 | -80 |
MCS0 | 26 | -96 |
MCS7 | 21 | -75 |
MCS9 | 19 | -70 |
